Product Features
1) strong overload capacity, low noise.
Product Description
1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Winding type:Delta
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.025mm
6)Radial play:0.025mm@460g
7)End play:0.025mm@4000g
8)Max radial force:75N @ 20mm from the flange
9)Max axial force:15N
10)Insulation class:Class B
11)Dielectric strength:500V DC for one minute
12)Insulation resistance:100MΩMin.,500VDC
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

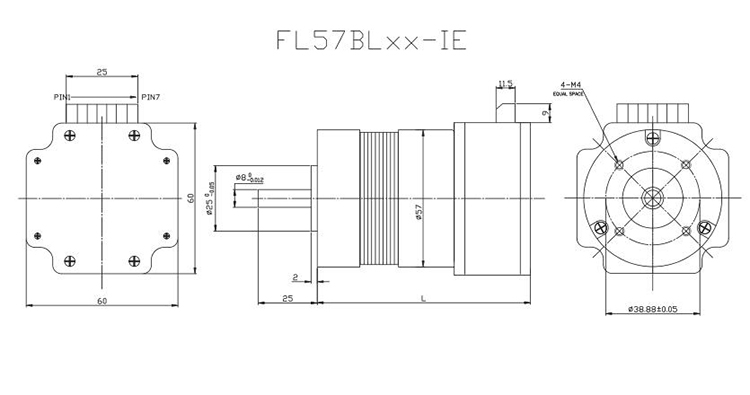

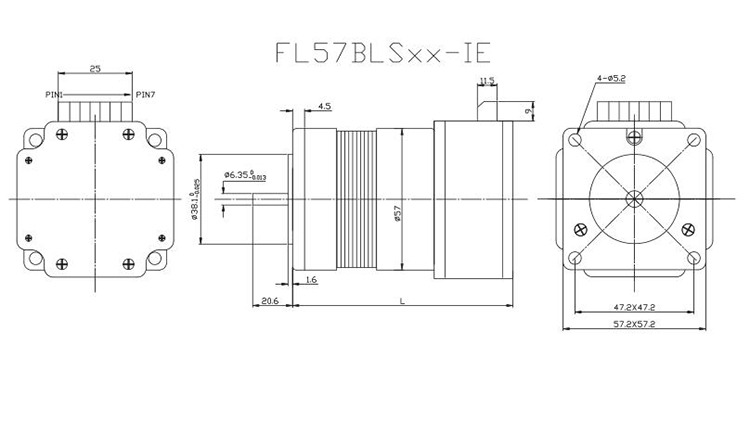

| Model | FL57BL(S)005-IE | FL57BL(S)01-IE | FL57BL(S)03-IE |
| Number of poles | 4 | ||
| Number of phase | 3 | ||
| Rated voltage VDC | 36 | ||
| Rated speed RPM | 4000 | 4000 | 4000 |
| Rated torque N.m | 0.055 | 0.11 | 0.22 |
| Rated power W | 25 | 46 | 99 |
| Peak torque N.m | 0.16 | 0.39 | 0.7 |
| Peak current A | 3.5 | 6.8 | 12 |
| Line to line resistance ohms@20℃ | 4.3 | 1.63 | 0.64 |
| Line to line inductance mH | 10 | 4.4 | 2 |
| Toque constant Nm/A | 0.052 | 0.061 | 0.060 |
| Back E.M.F Vrms/KRPM | 3.8 | 4.5 | 4.45 |
| Rotor inertia g.cm² | 30 | 75 | 119 |
| Body Length mm | 90 | 100 | 139 |
| Weight Kg | 0.56 | 0.67 | 0.9 |
Product Information
Diameter of motor:57mm
Length of motor:90mm, 100mm, 139mm
Color: black
Quotation Information
Price Range:$42- $110 per piece
Minimum Order Quantity:50 pieces
Lead time:30 days
