1.8° size 86mm round hybrid stepping motor

Model No.:
CB-86ST67
Features:
86mm stepping DC motor



Product Features


1) high torque DC Motor.

2) hybrid stepping motor.



Product Description


1)Type:hybrid stepping DC Motor
2)Stepping angle:1.8°
3)Step Angle accuracy:±5%(full step, no load)

4)Resistance accuracy:±10%(@20℃)

5)Inductance accuracy:±20%

6)Temperature Rise:80 ℃ Max.(Rated current, 2 phase on)

7)Ambient Temperture:-20℃-+50℃
8)Insulation Resistance:100MΩMin.,500VDC
9)Max radial force:220N (20mm from the flange)

10)Max axial force:60N

11)Dielectric strength:820VAC, 1s, 3mA

12)Insulation resistance:100MΩMin.,500VDC


Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

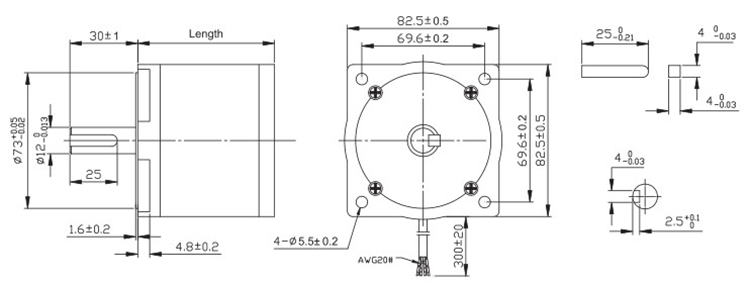

Product Information

Dimension of motor:82.5*82.5*Length  mm
Length of motor:67/94/125mm
Color: black & silver



Quotation Information


Price Range:$59- $100 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
