Product Features
1) Planetary reducer.
2) Stable running.
3) Long service life.
Product Description
1)Motor specification:
| Model | CBB2838-1236 | CBB2838-2436 |
| Number of poles | 4 | 4 |
| Number of phase | 3 | 3 |
| Rated voltage VDC | 12V | 24V |
| Rated speed RPM | 2800 | 2800 |
| Rated torque g.cm | 50 | 50 |
| Rated power W | 1.4 | 1.4 |
| No-laod current mA | 70 | 50 |
| Line to line resistance ohms | 2.1 | 0.95 |
2)Gearbox specification:
| Ration | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 |
| No. of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| Length mm | 22.6 | 22.6 | 29.2 | 29.2 | 29.2 | 35.6 | 35.6 | 35.6 | 35.6 | 42 |
| CBB2838-1236 | ||||||||||
No-load speed | 962 | 689 | 255 | 188 | 132 | 70 | 50 | 36 | 26 | 19 |
| Rated speed RPM | 755 | 200 | 147 | 104 | 55 | 39 | 28 | 20 | 15 | 11 |
| Rated Torque N.m | 0.016 | 0.023 | 0.056 | 0.075 | 0.11 | 0.18 | 0.25 | 0.36 | 0.50 | 0.60 |
| CBB2838-2436 | ||||||||||
| No-load speed | 962 | 689 | 255 | 188 | 132 | 70 | 50 | 36 | 26 | 19 |
| Rated speed RPM | 755 | 541 | 200 | 147 | 104 | 55 | 39 | 28 | 20 | 15 |
| Rated Torque N.m | 0.016 | 0.023 | 0.056 | 0.075 | 0.11 | 0.18 | 0.25 | 0.36 | 0.5 | 0.6 |
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
Product Information

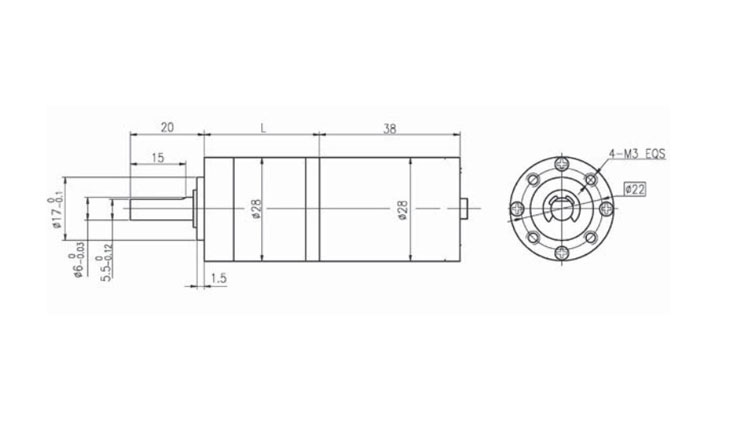

Diameter of gear box:22mm
Length of motor:38mm
Color: silver/black
Quotation Information
Price Range:$40 - $82per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
